PAL System LC/MS setup for 100 µl Smart Syringes, Needle Length 51 mm, including 2-Channel Volumetric Pump, PEEK Tubings, Wash Cup PEEK
PAL3-TH-SLCMS-AWC-100PF
LC/MS setup, consisting of:

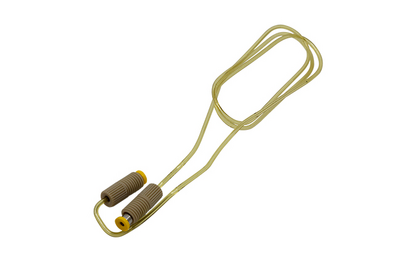

1 pc LC/MS-P-100 Tool incl. 100 µl Smart Syringe, Needle and PEEK Loop
1 pc 2-Channel Volumetric Pump incl. PAL Bus Connection Cable
1 pc PEEK Wash Cup
1 pc PEEK transfer tube 1/16" (for up to 1200 mm PAL)
2 pcs Solvent bottle 1000 mL
2 pcs PFAS-free Solvent Inlet Tubing Kit
• The combination of LC/MS Tool with the Wash Cup minimizes carryover and enables very fast injection cycles.
• The Volumetric pump delivers solvents precisely and accurately.
• Service interval is > 280'000 samples leading to high up-time and low maintenance cost.
Attention: Does NOT require LC/MS Wash module and Check Valve kit.
Requires PAL Series II with FW 4.12 or higher
