Smart SPME Arrow - New Dimension for Solid Phase Micro Extraction
Smart SPME Arrow - New Dimension for Solid Phase Micro Extraction

Superior Sensitivity and Improved Mechanical Stability

The PAL Smart SPME Arrow is a new patented technology for Micro Extraction combining trace level sensitivity with high mechanical robustness.

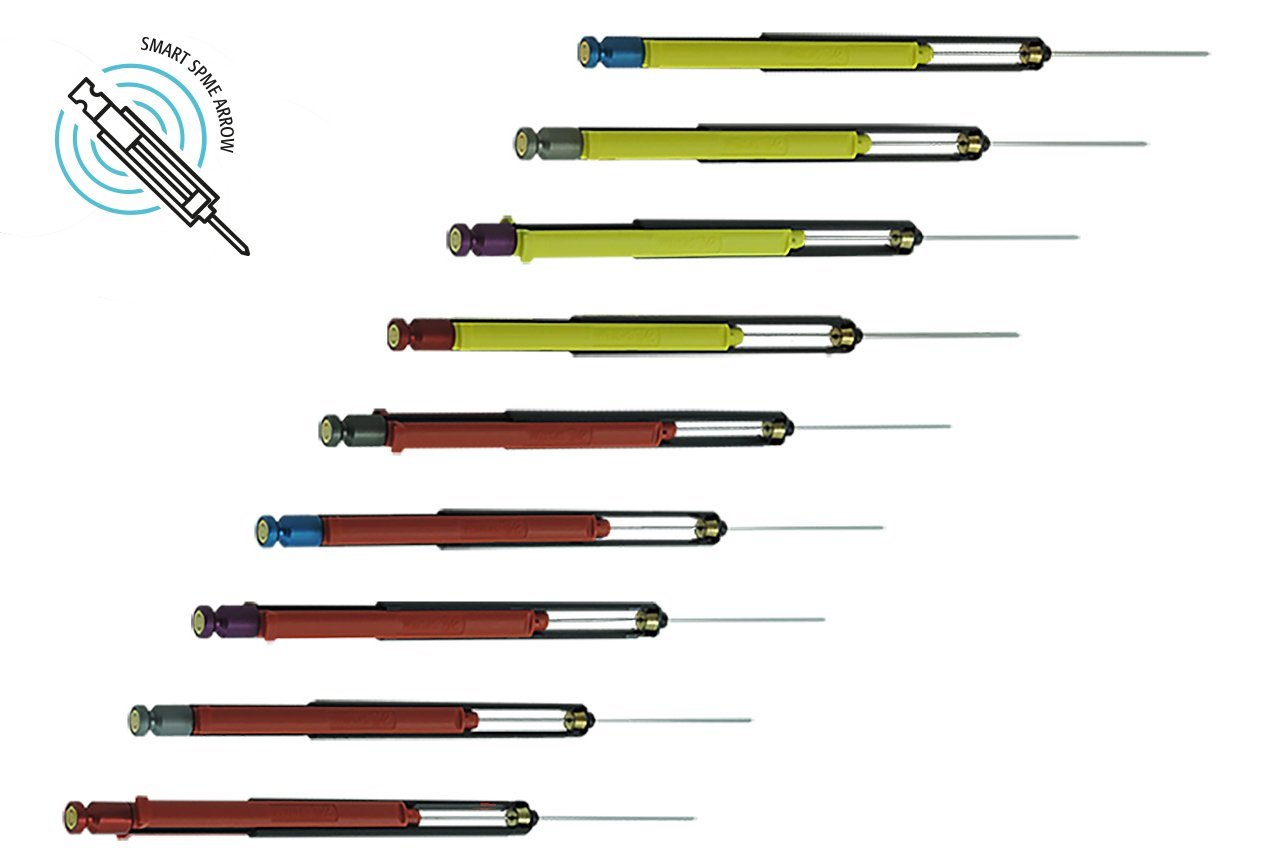

Color coded to indicate SPME Arrow coating and film thickness

Key functionality of Smart SPME Arrows:

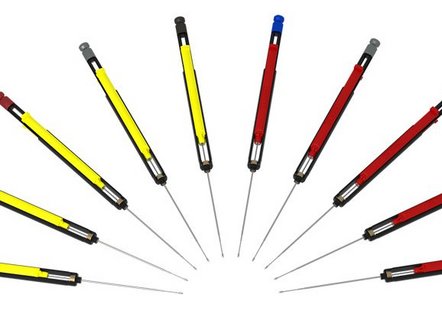

  • Available in 1.1 mm (red body) or 1.5 mm (yellow body) outer diameter

  • Smart SPME Arrow 1.5 mm  - for use with solvents or reagents, that may lead to moderate swelling of PDMS phases

  • 5 coating materials and 2 different film thicknesses

  • Arrow-shaped tip allows smooth vial penetration and injector septa

  • Design fully protects the coating material

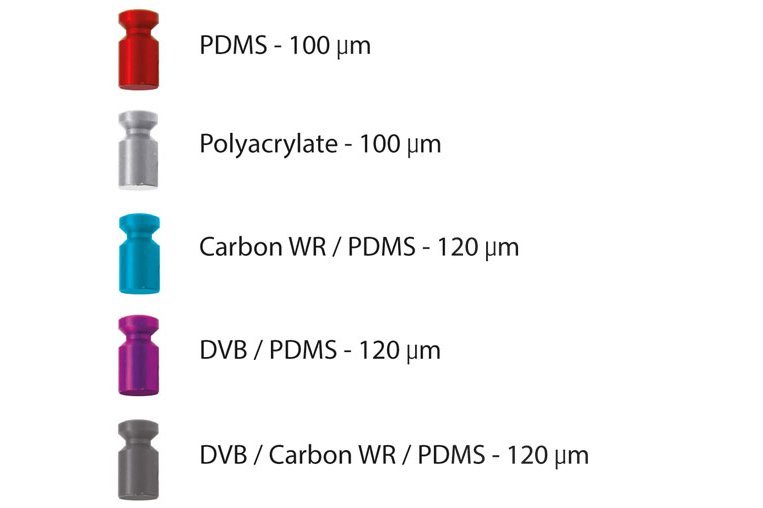

  • Color coded to indicate SPME Arrow coating and film thickness

  • Integrated holder design facilitates installation and maintenance



Benefits compared to classical SPME Fibers:

  • Up to 10 x more sensitivity compared to classical SPME Fibers

  • Up to 5 x longer lifetime

  • Full traceability thank to smart technology

  • Designed for headspace and immersion sampling

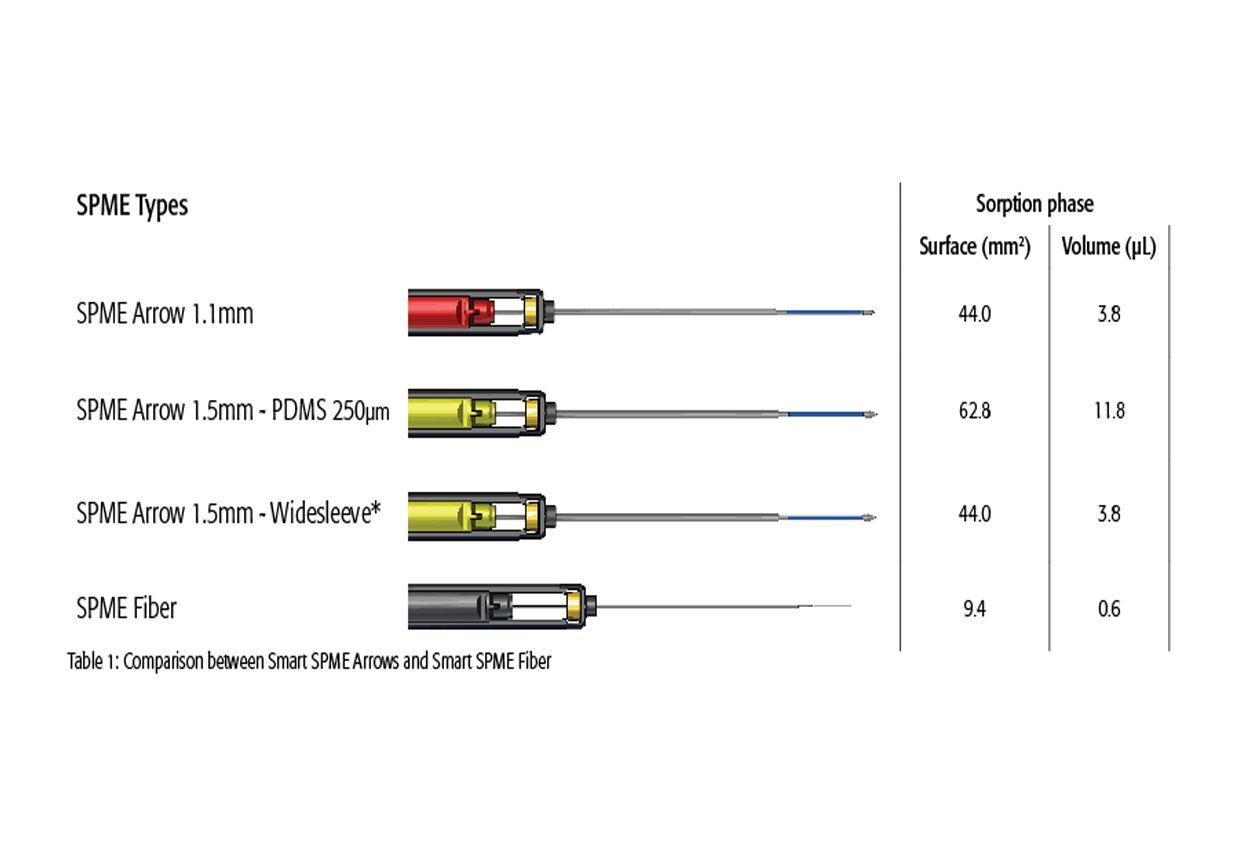

*Widesleeve SPME Arrows with 1.5 mm diameter have the same phase dimensions as the corresponding 1.1 mm SPME Arrows.The space to the outer needle allows phase swelling for special applications i.e. with high amounts of organic solvents. For all standard
applications with aqueous samples we recommend to use 1.1 mm SPME Arrows.



New: Introducing the SPME MultiGuide

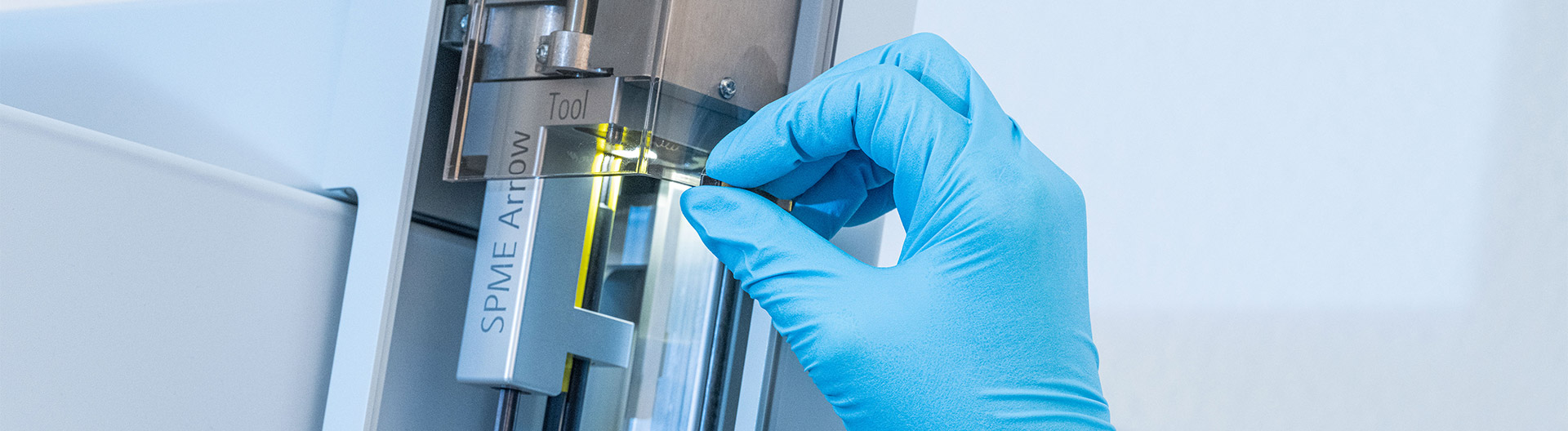

Unlock the complete potential of SPME Arrows, even with your current SPME Fiber Tool. The new SPME MultiGuide benefits all SPME user who are interested in applying SPME Arrows.

For SPME Fiber Users - Upgrade

Transition seamlessly to PAL SPME Arrows and incorporate their superior performance into your current processes without the need for new equipment or methods. Enjoy heightened sensitivity, improved durability, and cost-effective advantages with SPME Arrows. Upgrade your SPME Fiber Tool to fit SPME Arrows (1.1.mm) using the SPME MultiGuide.

For SPME Arrow Users - Get started

Start your work with PAL SPME Arrow and the SPME Arrow Tool. In the coming months, we will transition all SPME Arrow Tools to include the
innovative SPME MultiGuide. Enjoy workflow flexibility and streamline SPME Arrow extractions by routinely utilizing your Agitator.
Additional modules like the Heatex Stirrer are available as optional modules and only recommended for immersion applications or trace
analyses. The SPME MultiGuide lowers the initial costs of a SPME Arrow drastically, making it accessible for more laboratories.

Smart SPME Arrow Selection Guide

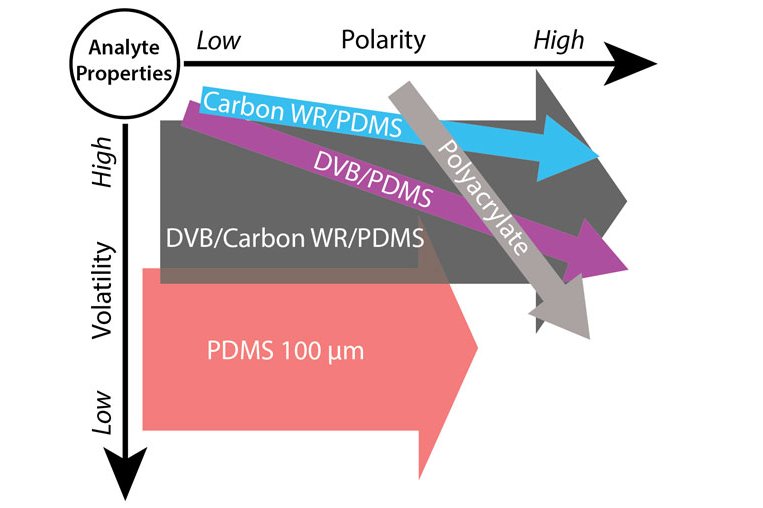

SPME Arrwo sorbents

Detailed information on the specifications and handling of Smart SPME Arrows are available. For automation of SPME Arrow with the PAL RCT and PAL RSI a SPME Arrow Starter Kit is available, as well as an Agitator for agitation/sample Enrichment at up to 200°C, SPME Arrow Conditioning Module and a Heatex Stirrer.

The PAL Smart SPME Arrows are available in order quantities of one, three or five Smart SPME Arrows per box.
For method development, a set of each SPME Arrow type (set of five) is available.

PAL Smart SPME Arrows work with all the PAL3 Systems, however to use the smart capabilities (ID, traceability, usage history)  the PAL3 Series II System is required.
