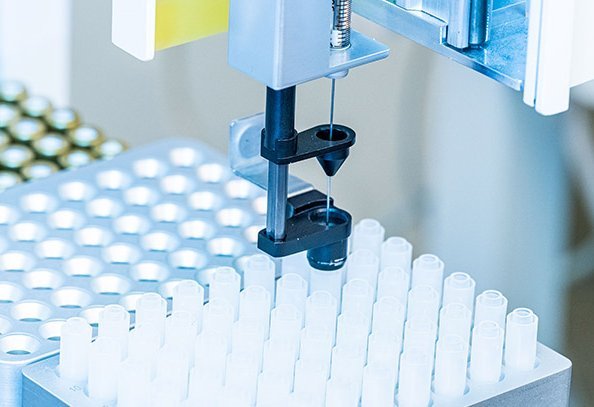

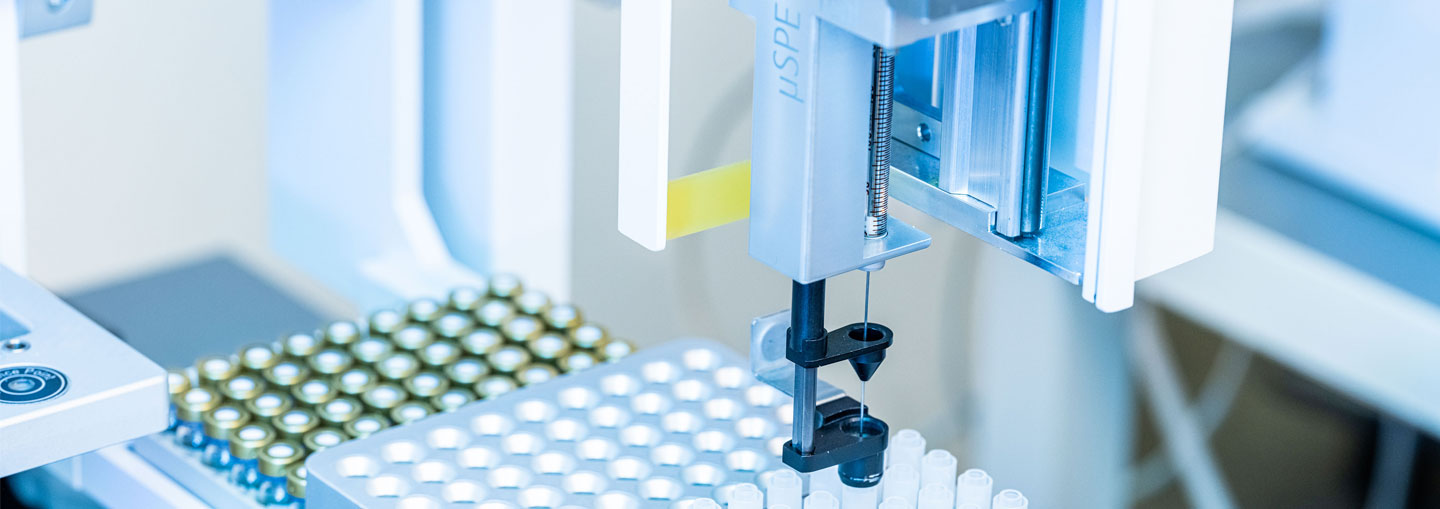

PAL Micro-SPE Tool with Cartridges

Micro-SPE: A Green Solution

Micro-SPE: A Green Solution

Micro-SPE: A Green Solution

Green Analytical Chemistry promotes the reduction of reagent usage, waste generation, and energy consumption throughout analytical workflows. Micro-SPE aligns with these GAC objectives by utilizing significantly reduced sorbent mass, leading to a proportional decrease in solvent volumes
required for extraction. This miniaturization also offers
benefits such as reduced extraction times and enhanced compatibility with automated sample preparation systems.

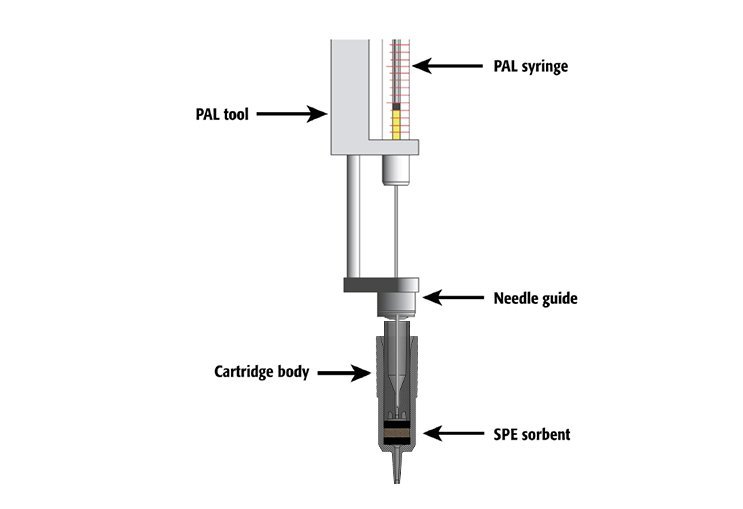

Micro-SPE cartridge and tool

The use of micro-SPE (µSPE) in automated sample preparation workflows replaces the manual SPE procedure with large solvent volumes - an important step ahead for green analytical chemistry and cost savings in the laboratory. The µSPE Cartridge works as a small LC column. Only micro volumes of sample or elution solvents are used. A syringe works as the solvent 'pump' with constant flow and pressure delivering high repeatability in the automated procedures.

Compare Classical SPE and micro-SPE

Dispersive SPE

Micro-SPE

  • Limited selectivity, limited clean-up

    • High sample and solvent volumes

    • Requires evaporation with N2

    • End volume > 0.5 ml in vial

  • High selectivity

    • Sharp eluation peak profile, no concentration

    • Final volume < 100-200 µl (or online), no sample concentration by evaporation

  • Good clean-up compares to LC separation

  • Manual Operation

    • Time consuming

    • Low sample throughput

    • Batch processing

  • Walk away automation

    • Fast with < 10 min

    • High productivity

    • Prep on chromatographic timescale

  • Not traceable

    • Manual operation

    • No activity log

  • Traceable

    • Processing well documented

    • 21CFR11 compatible
