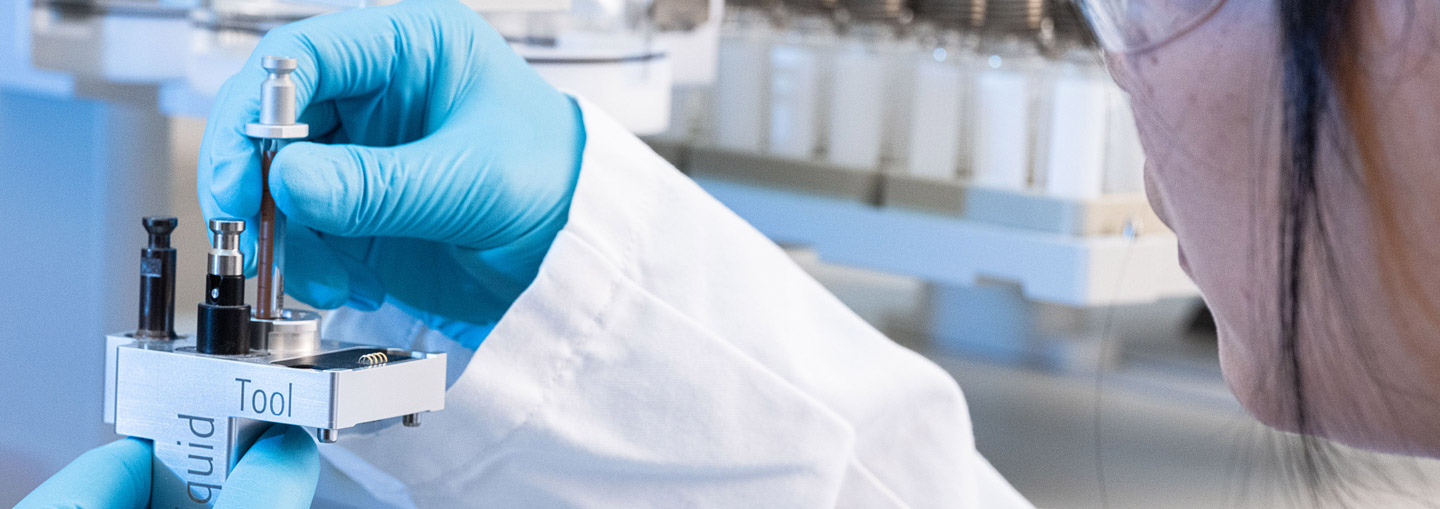

Smart Syringe being mounted in PAL Liquid Tool

PAL Smart Syringe - Stay in Contact with your Syringe

PAL Smart Syringe - Stay in Contact with your Syringe

PAL Smart Syringe - Provides the required process safety and efficiency

PAL Smart Syringe is equipped with its own read/write chip with preset parameters, ranges, usage tracking and a unique ID. The Smart Syringe is automatically recognized by the PAL System and all important parameters are loaded to secure highest precision and process safety.

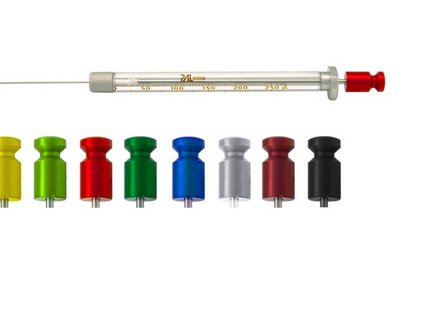

Smart Syringes colored heads to identify volume

Key functionality of PAL Smart Syringes:

  • PAL Systems read all syringes parameters from the smart chip

  • Status view on terminal display

  • Wide range of volumina

  • Color coded to indicate syringe type and volume

  • Traceable syringe history

Benefits of PAL Smart Syringes:

  • Error free usage (plug & play)

  • Increased process safety

  • Guaranteed quality

  • Ease of use

  • Optimized instrument up-time

  • Full traceability

  • Higher result confidence

PAL Smart Syringe Needle Point Style Guide

Several needle point styles are offered on our syringe. The correct point style varies depending on the intended application. Below are a few examples of common applications.

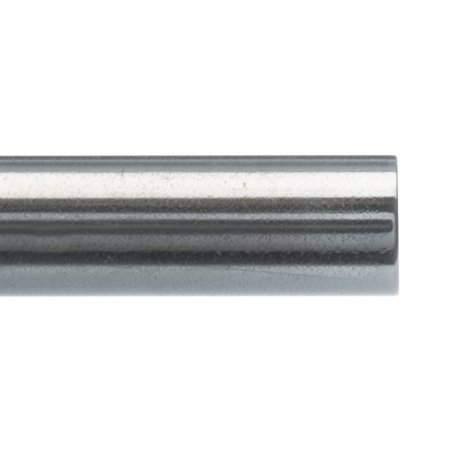

Needle Point Style Flat
Point Style flat
Blunt needle point for use with HPLC injection valves and for sample pipetting.

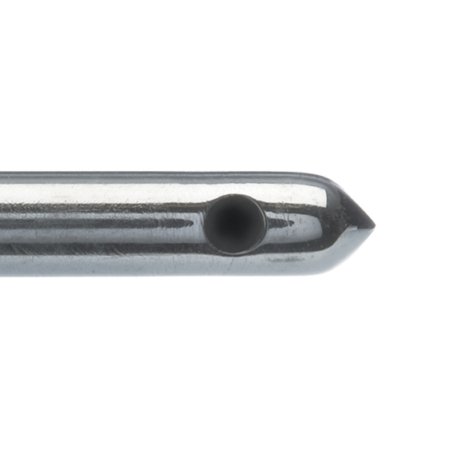

Needle Point Style Sideport
Point Style Sideport
Conical needle with side port for penetration of septa, thin-gauged vinyls and plastics without coring

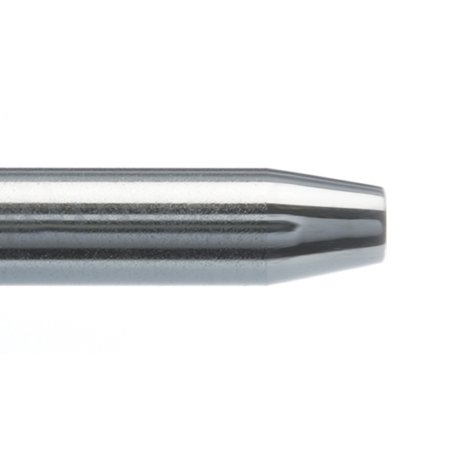

Needle Point Style Conical
Point Style Conical
needle point used on autosampler syringes the non-coring needle point is recommended for septum penetration

PAL Smart Syringe Needle Gauge Chart

Gauge Number Needle Nominal O.D. (mm) Needle Nominal I.D. (mm) Needle Wall Thickness (mm)
19 1.067 0.686 0.191
22 0.718 0.413 0.152
22S 0.718 0.168 0.279
23 0.642 0.337 0.152
23S 0.642 0.116 0.267
26 0.464 0.26 0.102
26S 0.474 0.127 0.178



Detailed information on the specifications and handling of Smart Syringes are available. For automation of Smart syringes with PAL3 Systems various tools are available, Liquid as well as ITEX DHS and Headspace Tools

PAL Smart Syringes work with all the PAL3 Systems. To use the smart capabilities (ID, traceability, usage history) the PAL3 Series II System is required.

Related Content

PAL3 Accessories & Smart Consumables
Brochures
PAL3 Accessories & Smart Consumables
PAL3 Accessories & Smart Consumables
PAL3 Accessories & Smart Consumables
PAL3 Accessories & Smart Consumables
PAL3 Accessories & Smart Consumables

PAL3 Accessories & Smart Consumables

Discover our Toolbox

PAL LC/MS Tools
Brochures
PAL LC/MS Tools
PAL LC/MS Tools
PAL LC/MS Tools

PAL LC/MS Tools

Three new LC-MS Tools, all equipped with Smart Syringes.

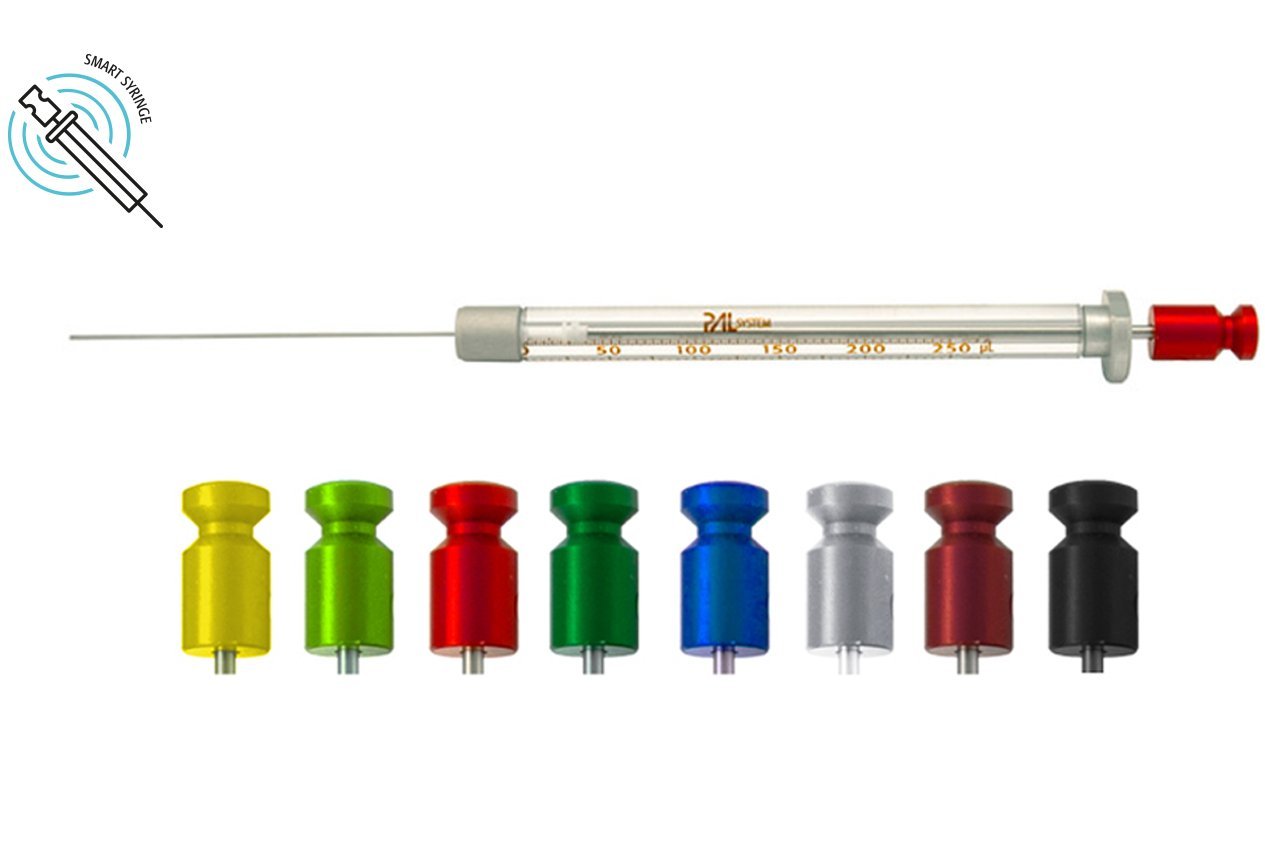

Smart Syringe colored heads for identification of volume
Care & User (handling) Guides

PAL Smart Syringes

General Information for PAL Smart Syringes

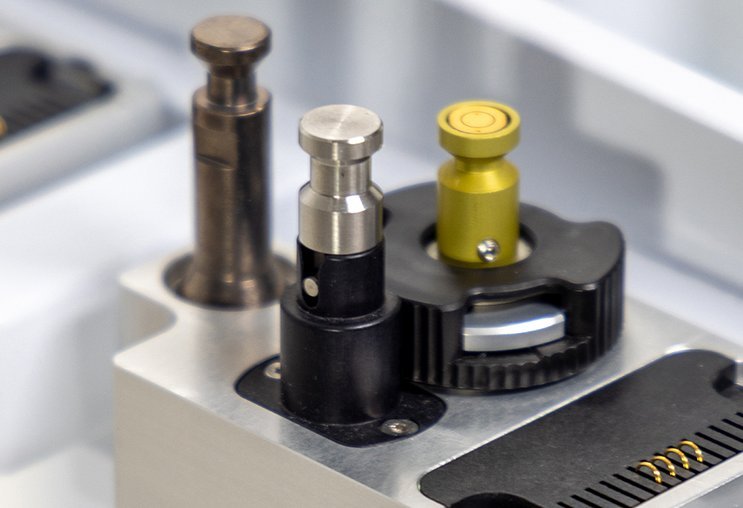

Smart Syringe being mounted in PAL Liquid Tool
